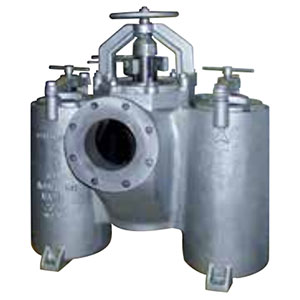

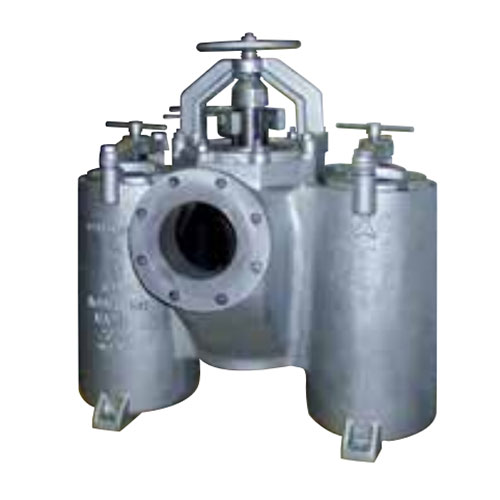

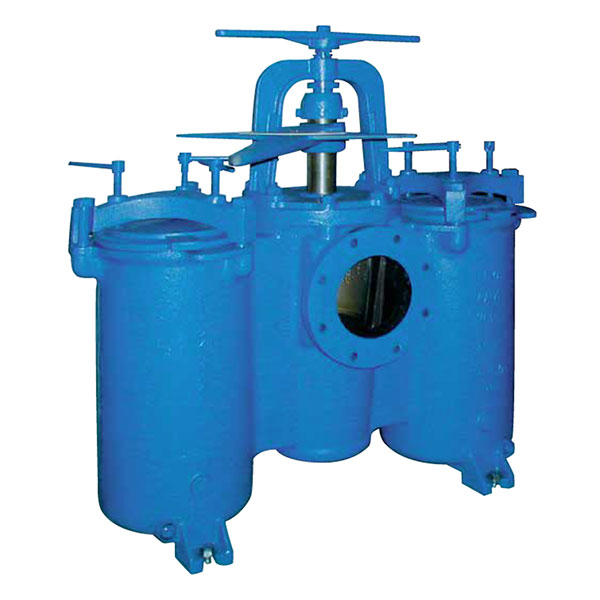

Eaton Model 50 Duplex Basket Strainer

Iron, Bronze, Carbon Steel or Stainless Steel, Flanged, 5" to 8"

The Eaton Model 50 Plug Type Duplex Strainer is a simple, economical and trouble-free design, time tested in applications around the world over many years. This type of strainer is a high-quality, pressure rated plug valve with integral straining baskets. Switching the flow from one basket to the other is accomplished by moving the operating handle through a 90 degree arc.

The design is such that it is impossible for this operation to stop the flow because of the unique port design in the diverter plug. The entire switching operation takes less than 30 seconds and no tools are needed. The plug is automatically positioned each time in exactly the right spot by integral stops.

    Features:
  • Continuous flow - no shutdown for basket cleaning
  • Rugged tapered plug design
  • Lift jack prevents plug galling
  • Quick open cover requires no tools
  • Large capacity baskets
  • Threaded drain
  • Machined basket seat
  • Perforated or mesh stainless steel basket
Available Sizes: 5", 6", 8"

*Scroll to the right on mobile to see entire chart

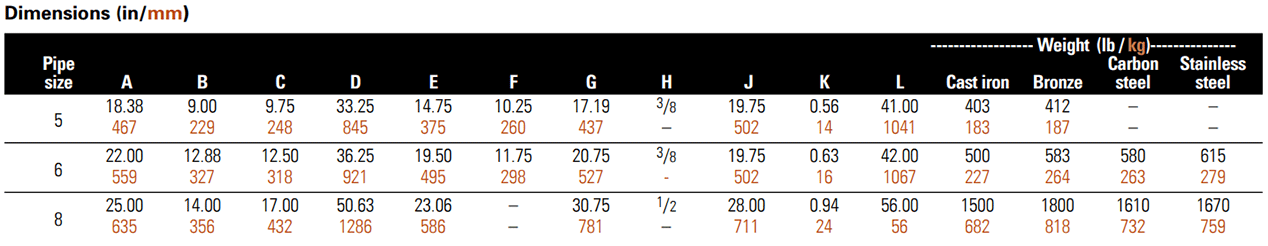

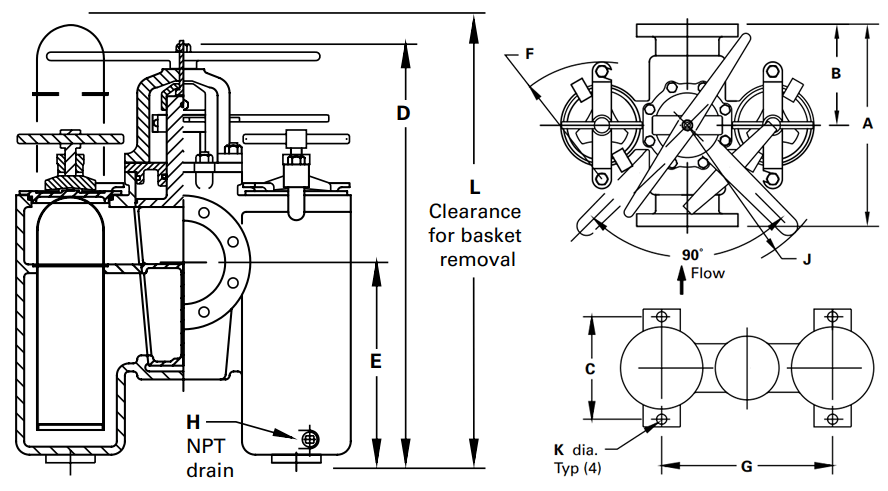

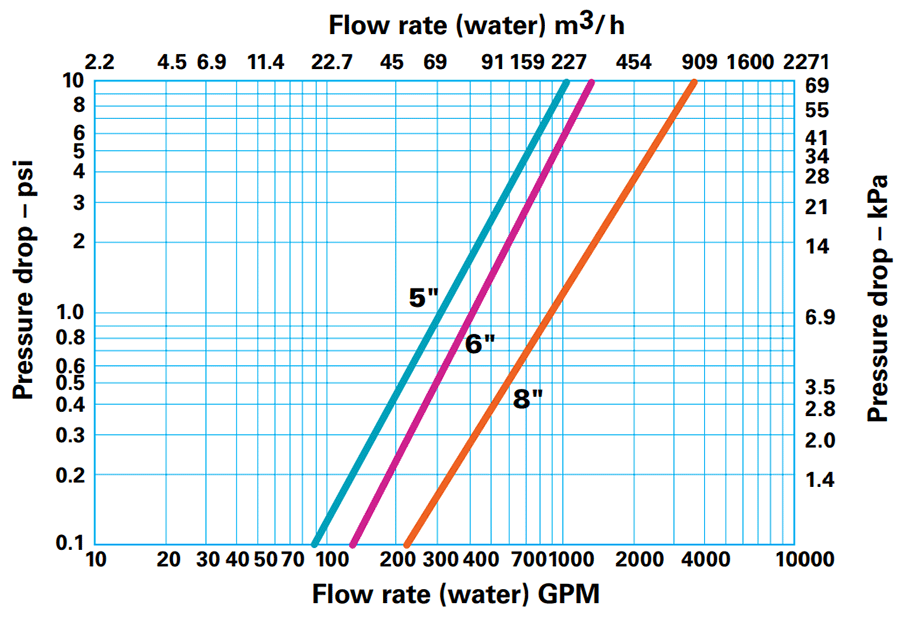

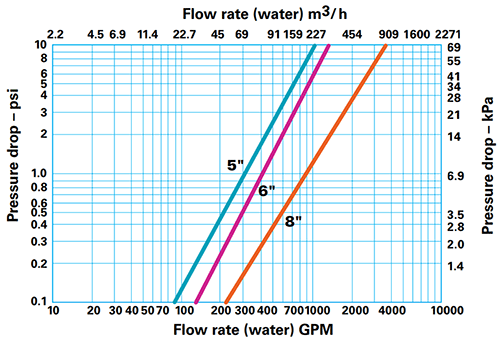

Cv Factors*
Size
5"
6"
8"
Value
300
420
900
* For water with clean, perforated basket
Other important features of the plug type Model 50 Duplex Basket Strainers include a quick opening, swing away yoke design covers. No tools are required to remove the cover for quick and easy access to the strainer baskets, and they go back on just as fast as they came off. Draining of the basket chambers is simplified with the standard NPT drain taps. All Model 50 Duplex Basket Strainers are provided with mounting legs for bolting the strainer to the floor for a rock solid installation.

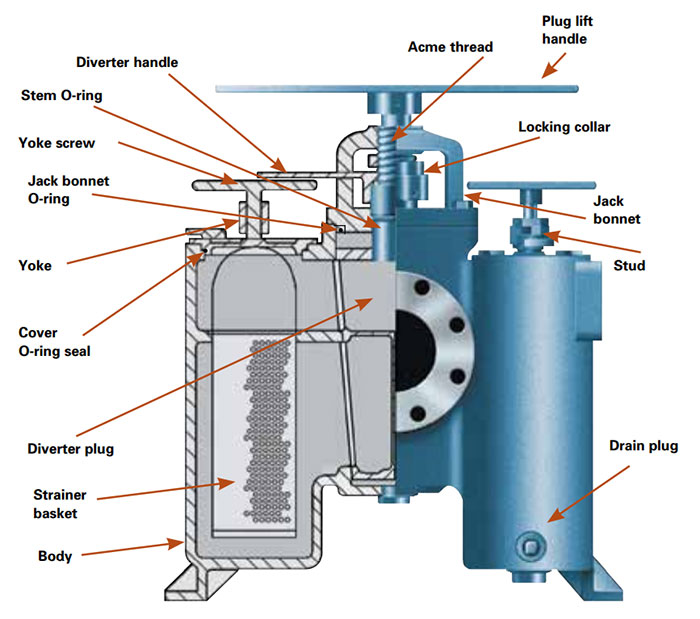

Before operating the handle a manual, integral lifting jack, built into the strainer is used to lift the diverter plug off of its seat. After the switching operation the lifting jack is used to reseat the plug. The lifting jack is specially designed to lift and seat the plug easily, even under high pressures. A built in stop limits the distance the diverter plug can be raised. This minimizes the possibility of material by-pass while it is being rotated. It also prevents debris from building up under the plug and making it difficult to reseat.

Eaton OptionsOptions and Temporary Strainers


• Ductile iron construction
• Basket perforations from 1/32" to 1/2"
• Basket mesh from 20 to 400
• Monel baskets
• Viton®, TFE or EPDM seals
• Vent valves
• Drain valves
• 1/4" NPT taps
• Pressure differential gauge and switch connections
• Magnetic basket inserts

MONEL® is a registered trademark of Special Metals Corporation group of Companies.
Viton® is a registered trademark of E. I. du Pont de Nemours and company.
