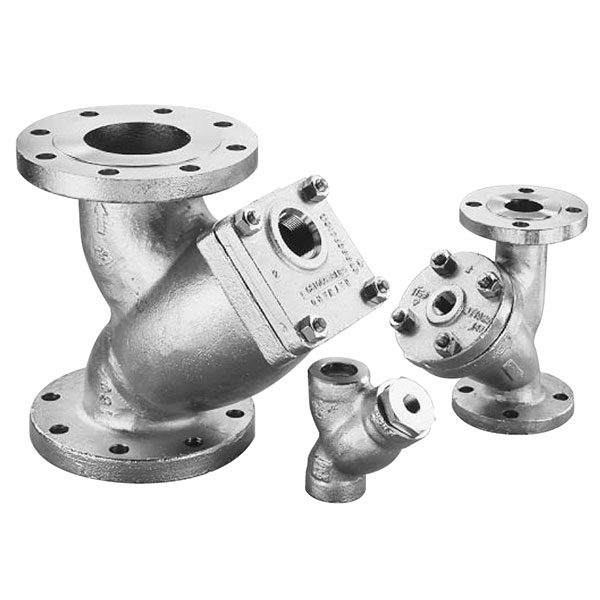

Click for Larger ViewEaton Model 85 Y Strainer
Carbon Steel or Stainless Steel, Threaded, Flanged or Socket Weld, 1/4" to 10"Eaton Y Strainers are a cost-effective solution for the mechanical removal of unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.
-
Features:
- Heavy Duty Construction
- Compact design
- Bolted or threaded covers
- Standard stainless steel screens
- Suitable for liquid, gas or steam
- Synthetic fiber gaskets
Available Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10"
Eaton Model 85 Y strainers are engineered to withstand aggressive industrial and commercial applications. Y strainers protect downstream process system components by mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element.
To protect against any bypass, the Model 85 Y strainers are manufactured with a precision machined screen seat on the body of the strainer and high quality stainless steel screens fabricated to fit the strainer body perfectly. Model 85 Y strainers are available in carbon steel or stainless steel for pipeline sizes from 1/4" to 10" with threaded, flanged or socket weld connections.
For cost effective straining solutions, Y strainers work well in applications in which the amount of material to be removed from the flow is relatively small--resulting in long intervals between screen cleanings. The strainer screen is manually cleaned by shutting down the line and removing the strainer cap.

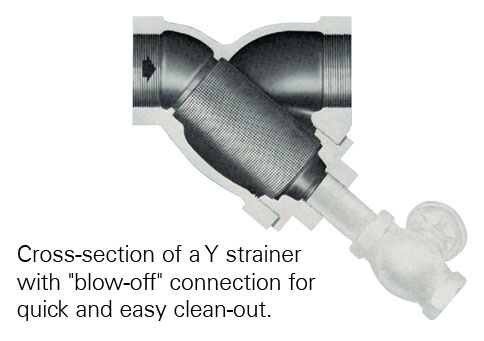

For applications with heavier dirt loading, Y strainers fitted with a “blow-off” connection permit cleaning of the screen without removing it from the strainer body.
To protect against any bypass, the Model 85 Y strainers are manufactured with a precision machined screen seat on the body of the strainer and high quality stainless steel screens fabricated to fit the strainer body perfectly. Model 85 Y strainers are available in carbon steel or stainless steel for pipeline sizes from 1/4" to 10" with threaded, flanged or socket weld connections.
For cost effective straining solutions, Y strainers work well in applications in which the amount of material to be removed from the flow is relatively small--resulting in long intervals between screen cleanings. The strainer screen is manually cleaned by shutting down the line and removing the strainer cap.
For applications with heavier dirt loading, Y strainers fitted with a “blow-off” connection permit cleaning of the screen without removing it from the strainer body.

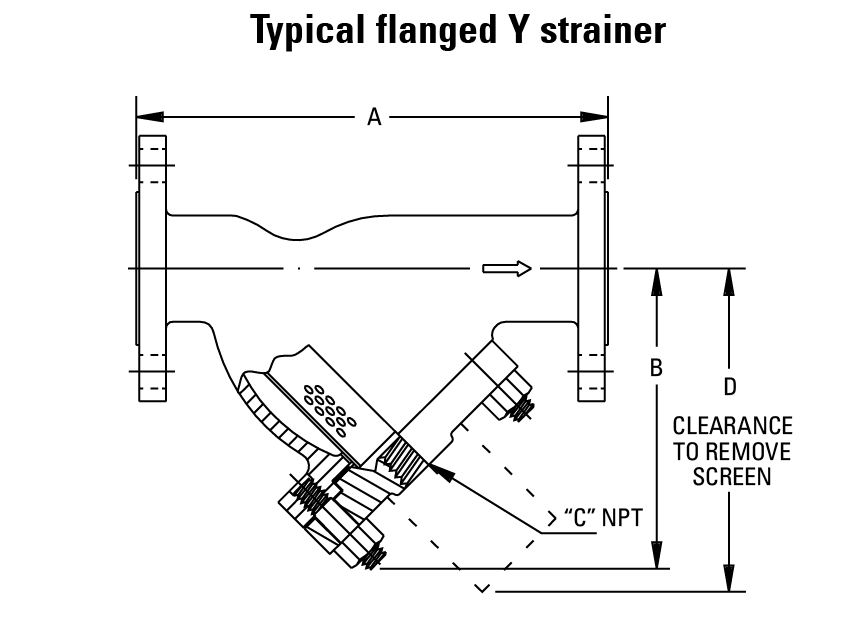

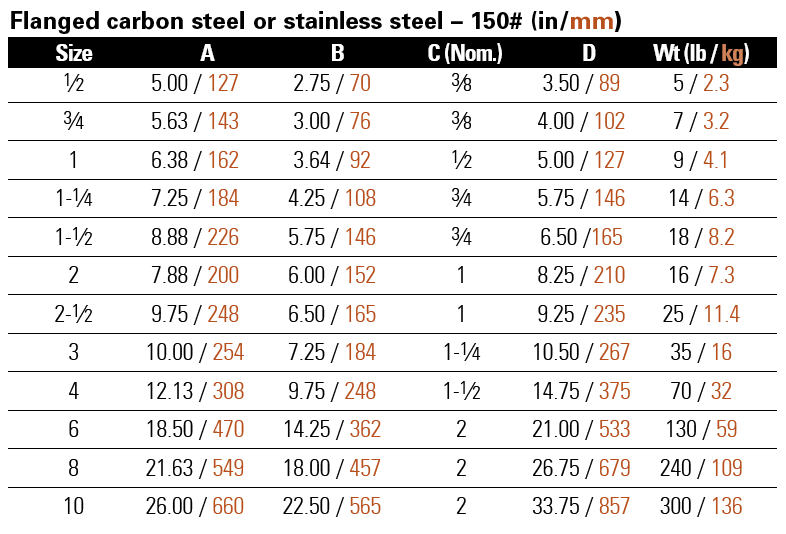

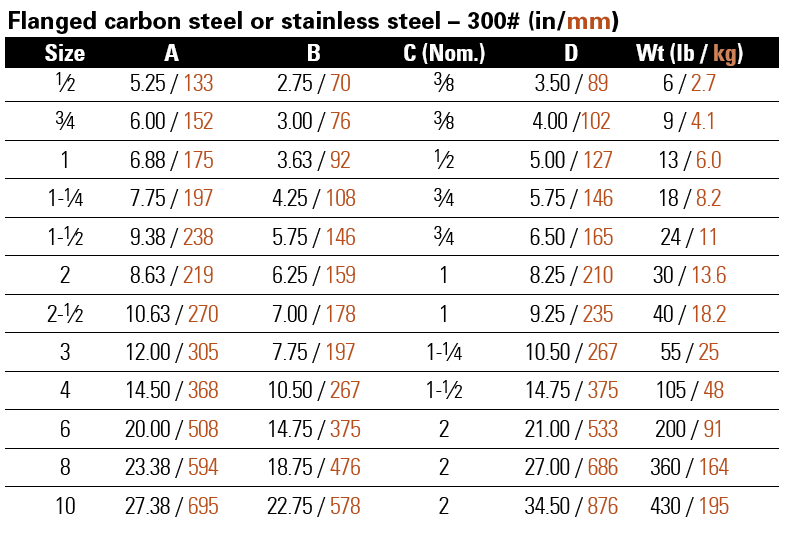

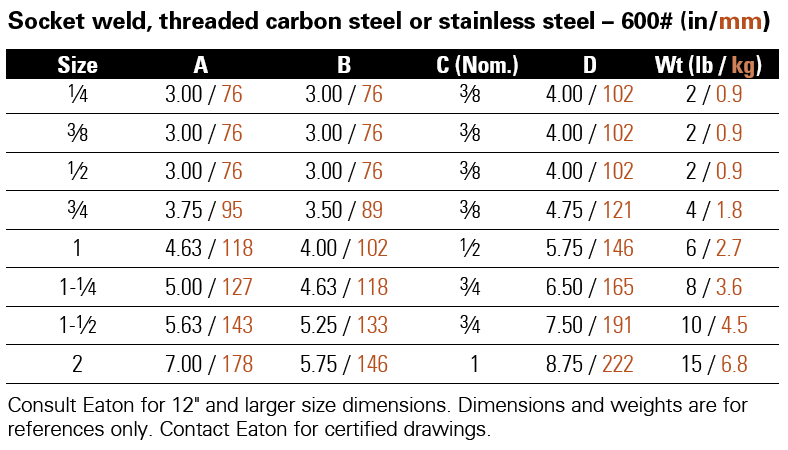

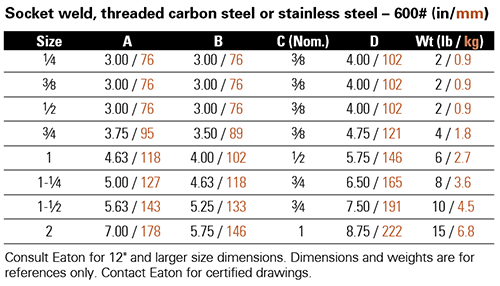

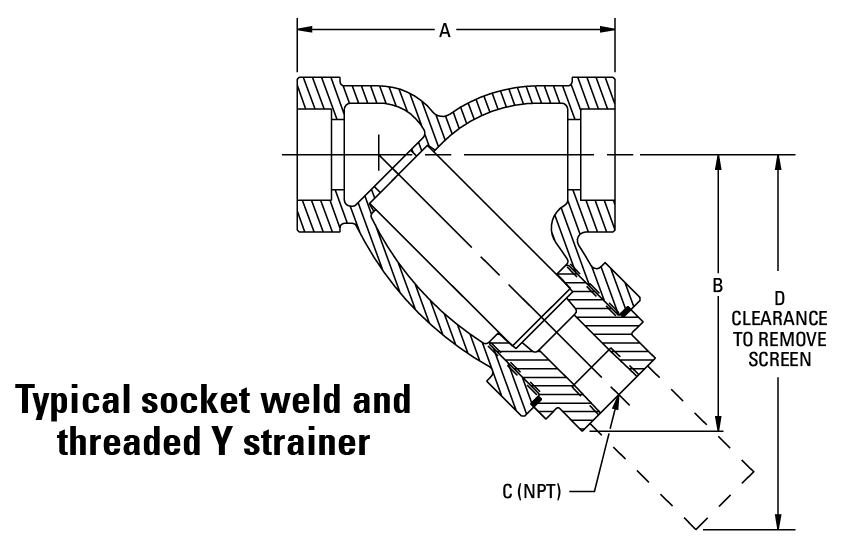

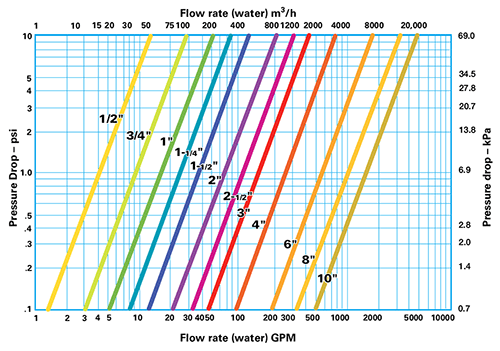

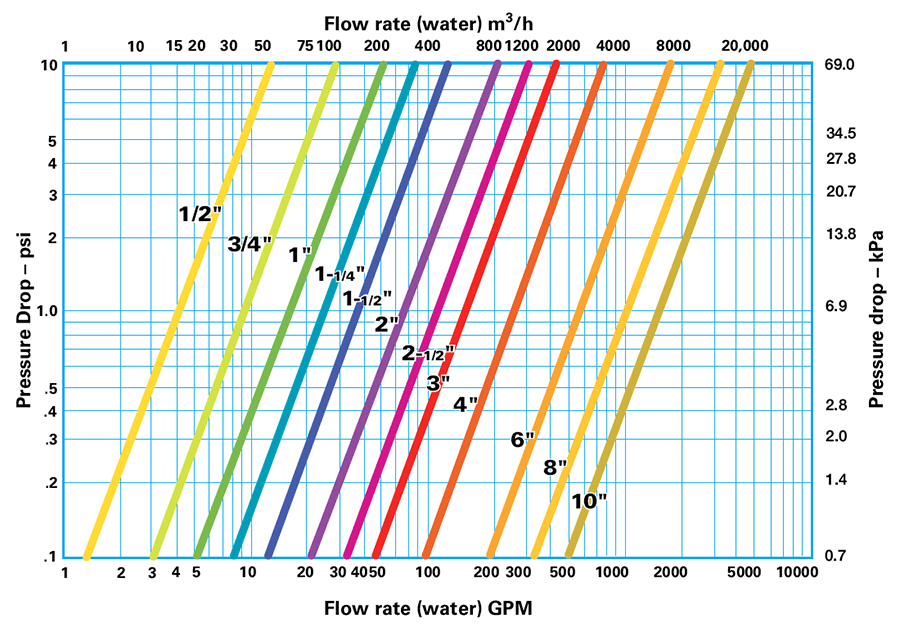

Flow Rates - Click for Larger View

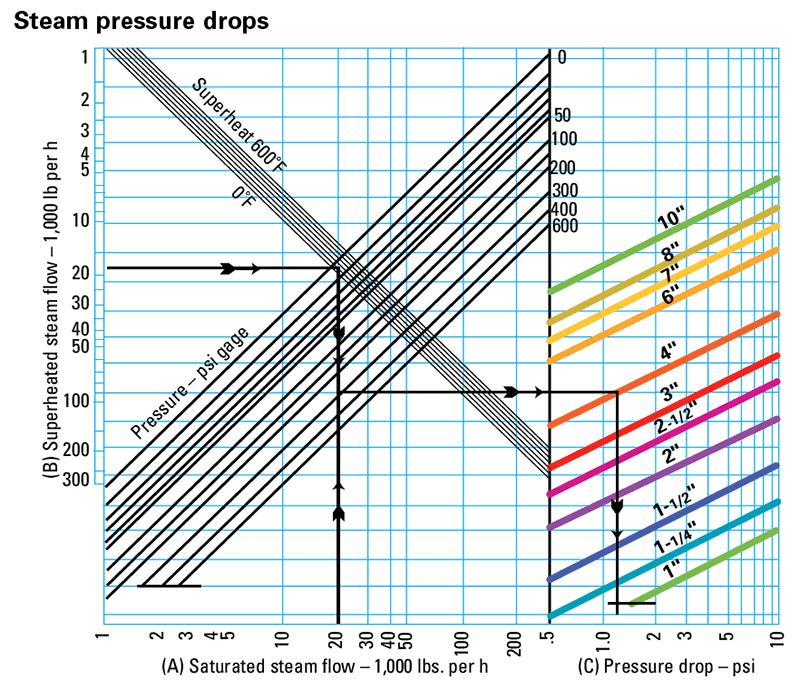

Steam Pressure Drops - Click for Larger View
Types of Connections
Y strainers are available in a wide variety of end types
including threaded, flange, or welded. Flanges are designed
to ANSI specifications.
Special flanges such as ring joints are often available as well.
Y strainers can also be constructed to US Navy flange dimensions,
which are different from commercial standards. For extremely
high pressure applications, Y strainers with socket or butt weld
end connections are often specified.
Options:
• Basket perforations from 1/32" to 1/2"
• Basket mesh from 20 to 400
• MONEL® screens
